Model: TS100
Features & Benefits
- Efficient Thermal Conductivity; Made of silicone and a special filler, outperforms generic and performance pads.
- Perfect Filling the Gap; Without any problems as gap filler and bridges in uneven surface and gaps because of low hardness and great compressibility.
- Easy to Apply and use, no matter removed or repositioned
- Safe Handling; Without any metallic particles and capacitive, with electrically isolating, will not result in damage of any sort when handle.
- Adhesive can be customized
- Custom shape, size and thickness also available.
Spec. Sheet(Shape, size and thickness can be customized)
Property/Model | ASTM | Unit | TS100 | TS150 | TS200 | TS300 |
Color | Visual | ...... | grey | grey | grey | grey |
Thickness | D374 | mm | 0.5-8 | 0.5-8 | 0.5-8 | 0.5-8 |
Specific Gravity | D792 | g/cc | 2.4 | 2.1 | 2.5 | 2.6 |
Hardness | D2240 | shore 00 | 35 | 30 | 30 | 30 |
Breakdown Voltage | D149 | kv@1mm | >6 | >6 | >6 | >6 |
Volume Resistivity | D257 | Ω-cm | 9.6x10^12 | 9.6x10^12 | 9.6x10^12 | 9.6x10^12 |
Flame Rating | UL94 | v-0 | v-0 | v-0 | v-0 | |
Thermal impedence | Thermal conductivity | ºC-in^2/W | 1.08 | 1.1 | 0.96 | 0.8 |
Thermal Conductivity | D5470 | W/m.K | 1.0 | 1.5 | 2.0 | 3.0 |
Application:
- PCB, PCB module
- PC computer, Laptop, motherboard, CPU, GPU, processor, ram, ssd, cooling fan and ect.
- PS3, PS4
- LED light, LED tube, LED lamp strips, LED bulb,LED driver and etc.
- Analytical
- Automotive
- Health care
- Industrial laser
- Mobile communications
- Semiconductor
- Telecommunications
Storage and Validity
Shelf life:18 months;
Storage conditions: Cool and dry place (5ºC<T<30ºC); Relative humidity: RH<70%

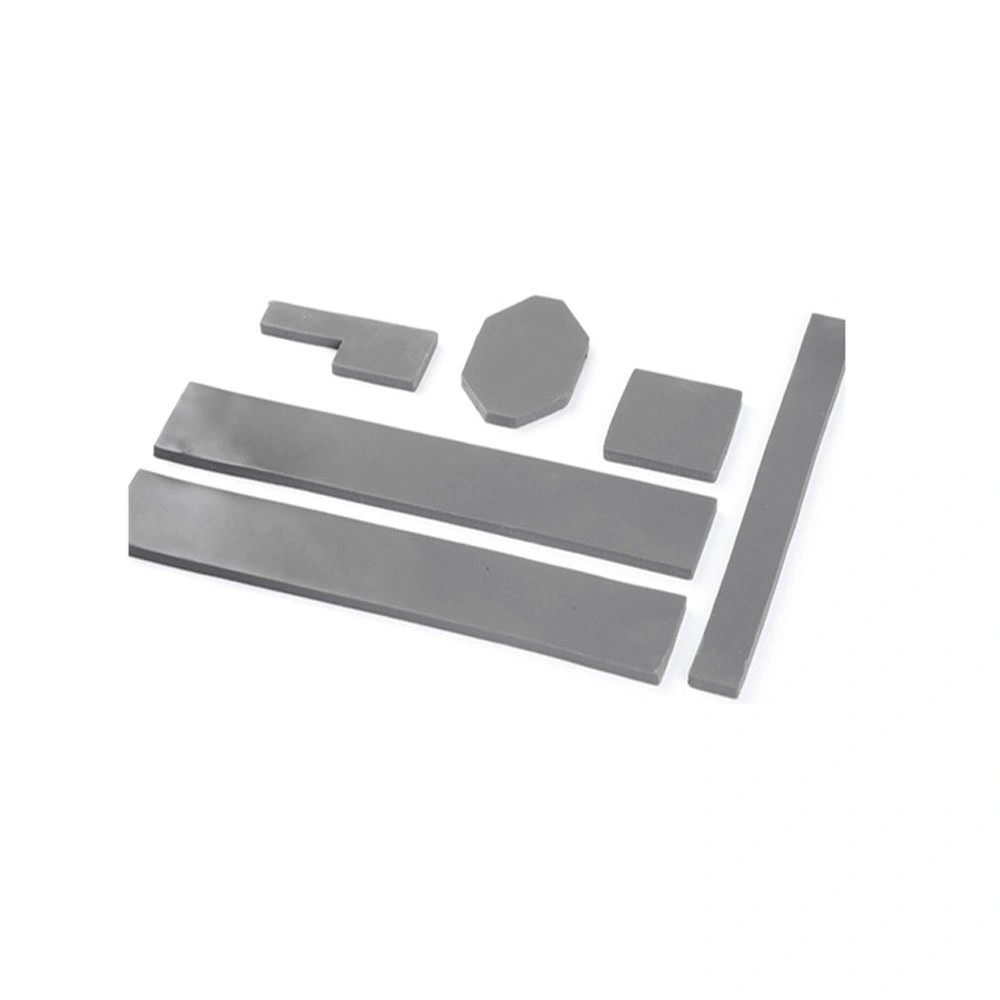

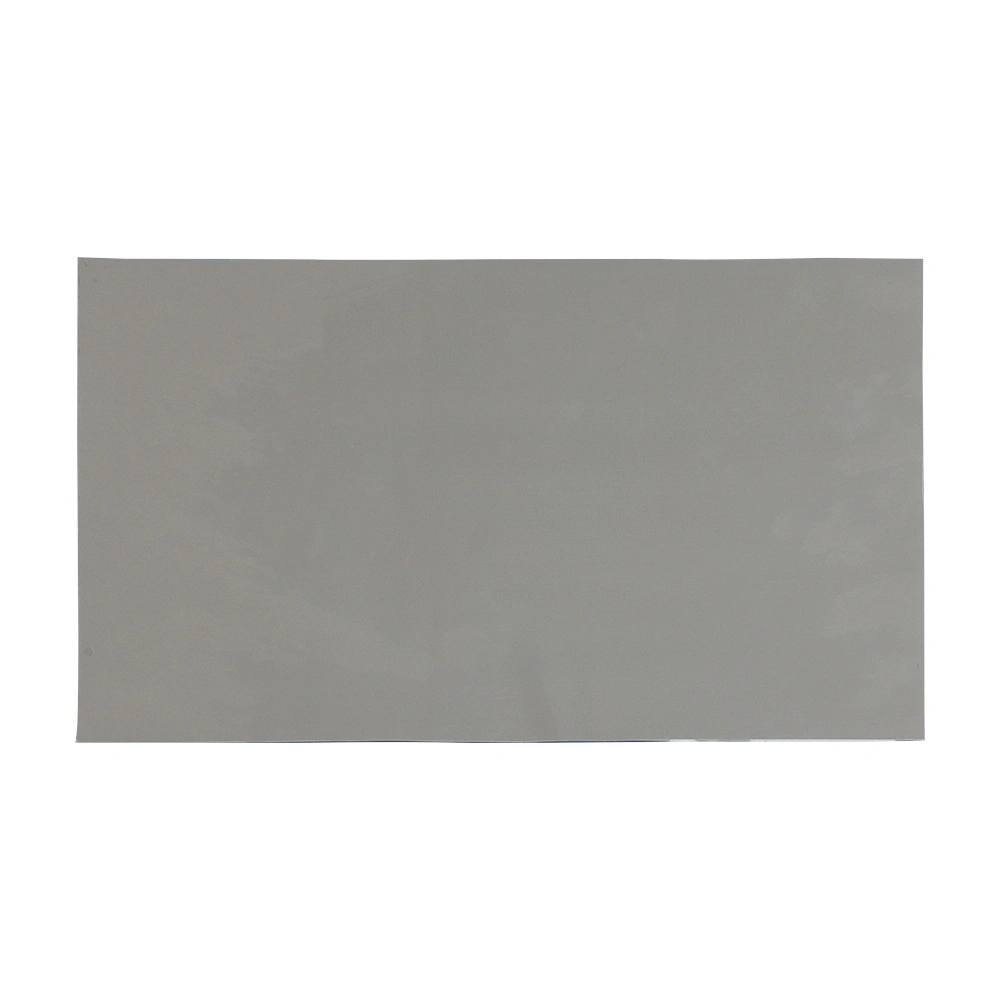

Pics:
NOTES
1.This material is harmless under specific safe measures. But that doesn't mean some people are not allergic to it.
2.Take measures to protect our skin from touching the gel like wearing impervious rubber or plastic gloves and protect our eyes.
3.After using the material, we need to clean our skin with soap and warm water and avoid using the solvents.
4.Use disposable paper towel to rub our skin.
5. Keep ventilation in the work place.
FAQ
Q1: What's the thermal conductivity test method given on the data sheet?
A1: Tested the thermal conductivity by the third party"ASTM".
Q2: How to find a right thermal conductivity for our application?
A2: Depends on the watts of power source, ability of heat dissipation.
Q3: What other products you have?
A3: Thermal crease, thermal glue, bonding glue, LED silicone, RTV glue, silicone potting, thermal pad, SMT red glue, dispenser and ect.
Q4: Do you accept custom orders?
A4: Yes, sure. Welcome to custom orders. Our custom elements including dimension,shape,color and coated one side or two sides adhesive or coated fiberglass. If you want to place a custom order, pls kindly offer a drawing or leave your custom order info.
Q5: Do you offer free samples?
A5: Yes, we are willing to offer free samples but pls kindly note that your side pay for freight.
Q6: How to ship our orders?
A6: We will help to arrange transportation for you. But if you want to use your own courier pls kindly tell us before shipping out.
Q7: What's the leading time?
A7: 1-3 working days for Sample orders,3-5 working days for mass production.
